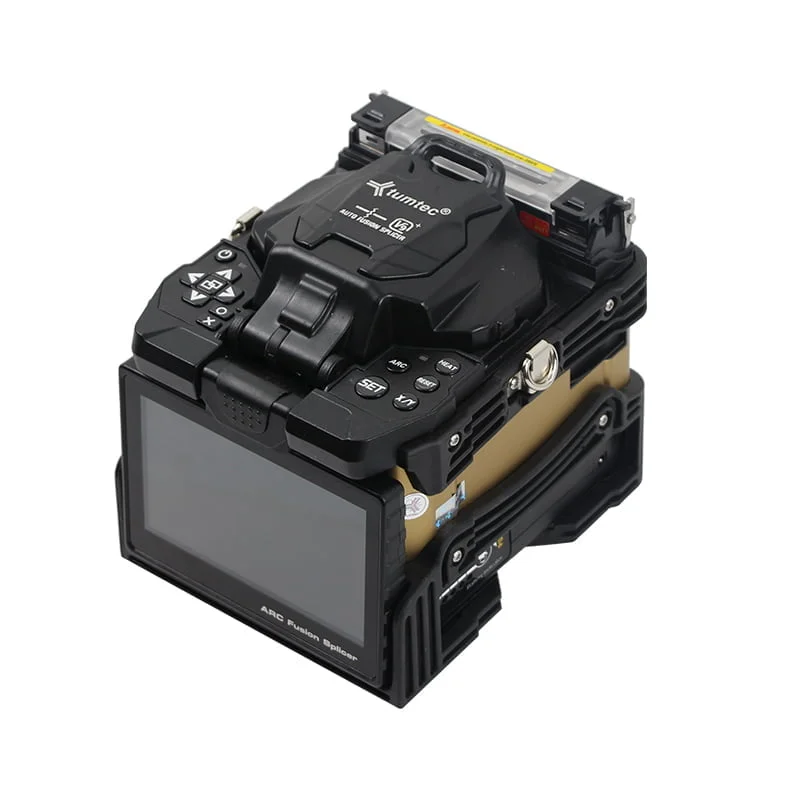

Tumtec V9+ Core Alignment Fusion Tool
Tumtec V9 Multifunctional Backbone Project Fiber Optic Splicer. The V9 splicer is primarily used for backbone projects, such as those exceeding 60 km. It employs a precision core alignment method to ensure accuracy and low splice loss.

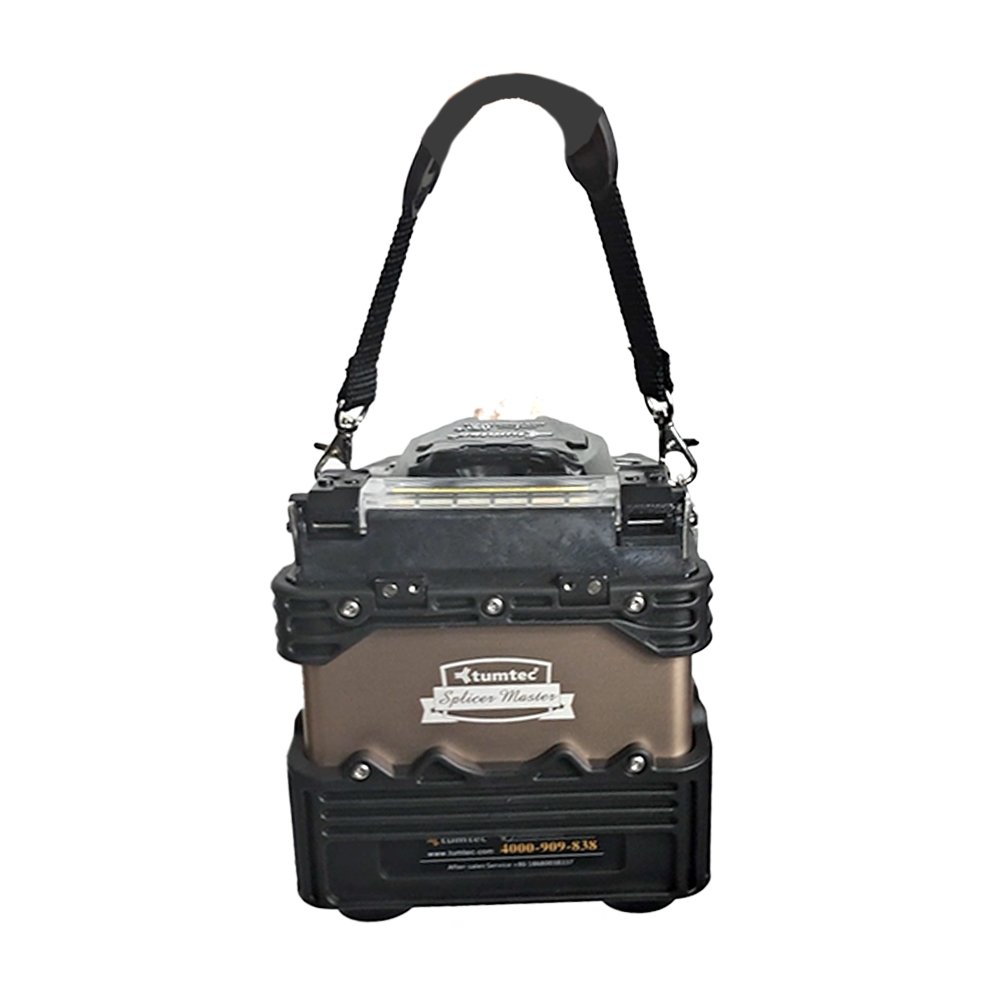

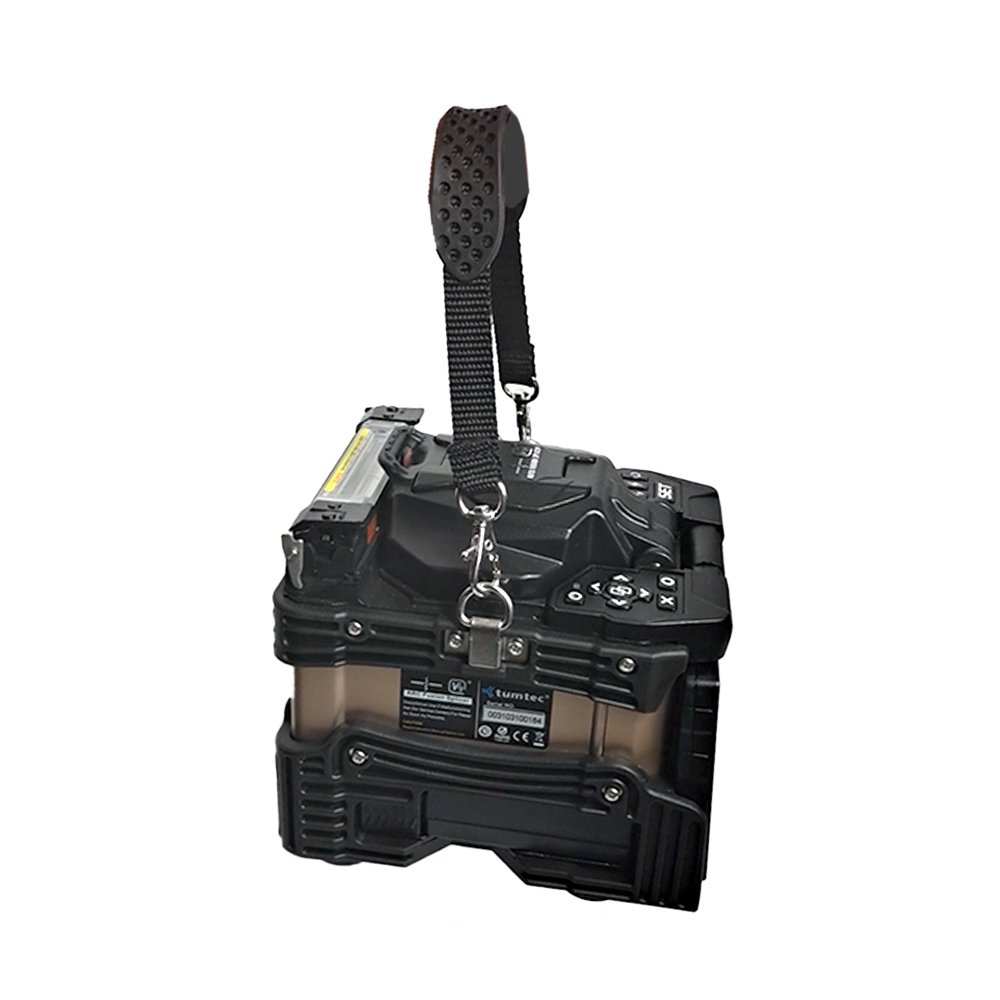

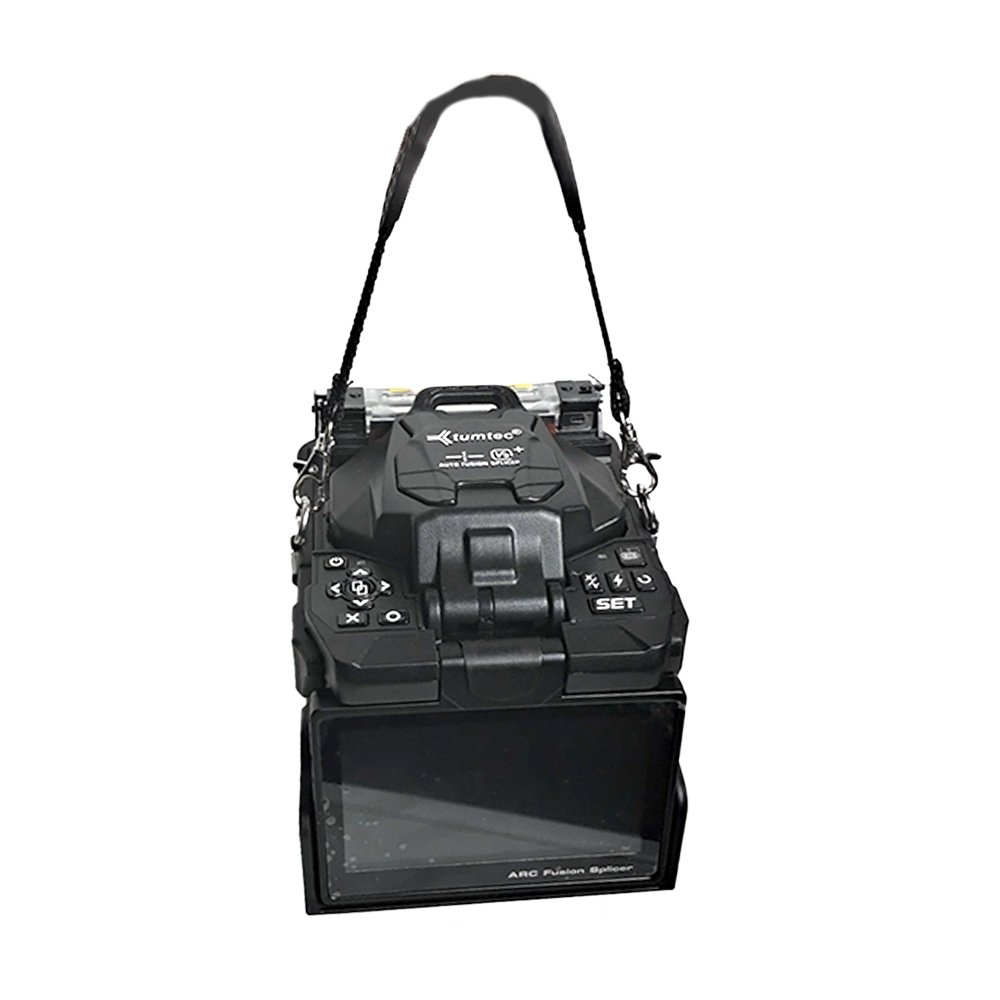

The V9 splicer's protective cover is windproof, freezeproof, shockproof, and waterproof, providing fiber protection. It features a transparent plastic button for convenient operation, and includes a handle and strap. The V9 fiber optic fusion splicer uses a mini-USB 2.0 port and a high-capacity 5200mAh battery, offering strong endurance and 280 splicing and heating cycles.

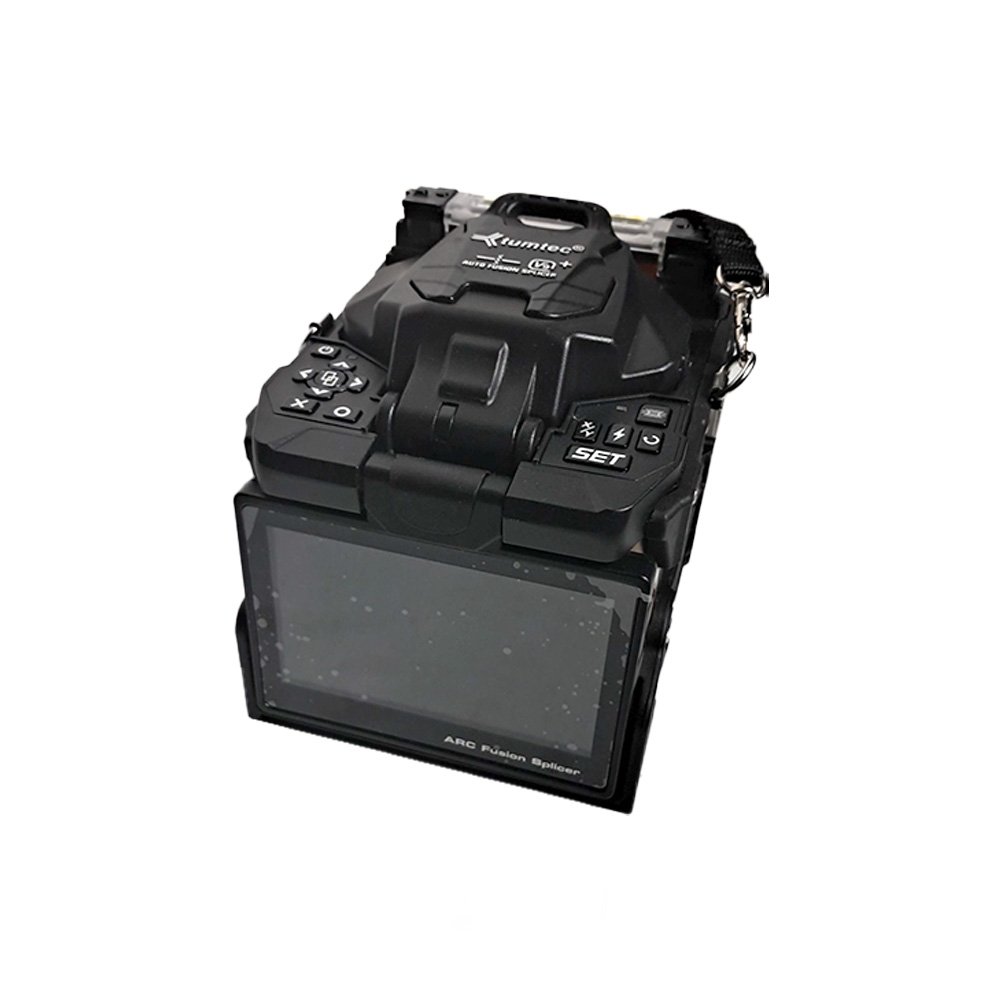

The V9 fusion splicer features an LCD touchscreen with an adjustable angle of over 180 degrees. With a 5" high-resolution touchscreen, double-clicking over 500 times allows the operator to zoom in and double-click the screen to view the splice trace and assess the splice situation.
The V9 splicer features fast running speed, 3-second start-up, 6-second splicing, 15-second warm-up, precise single-fiber alignment with 6 motors, and an automatic splicing procedure, making it convenient to operate.
